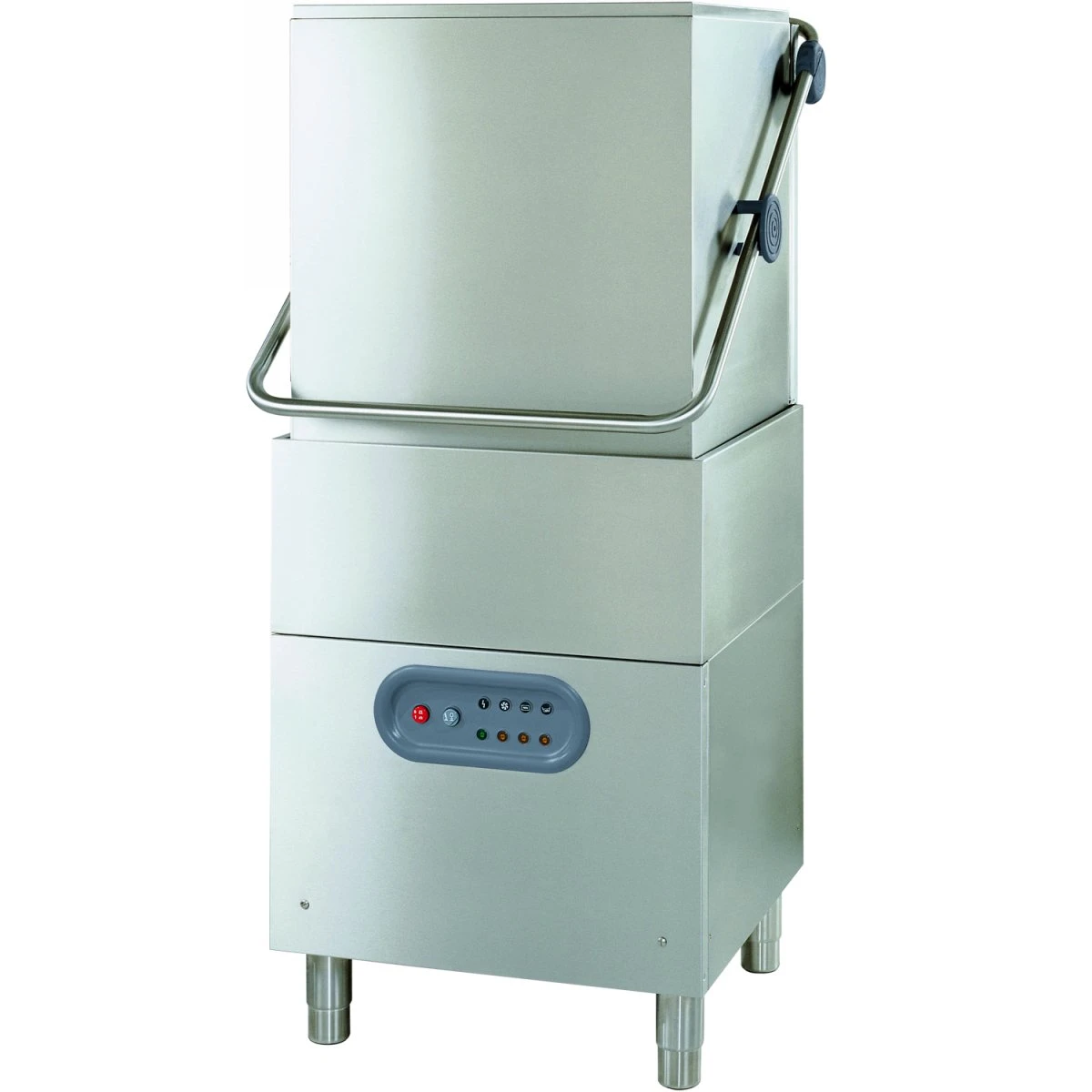

Pass Through Dishwasher Premium Rinse Aid Pump Detergent Pump 230V | Omniwash 61BDD-230

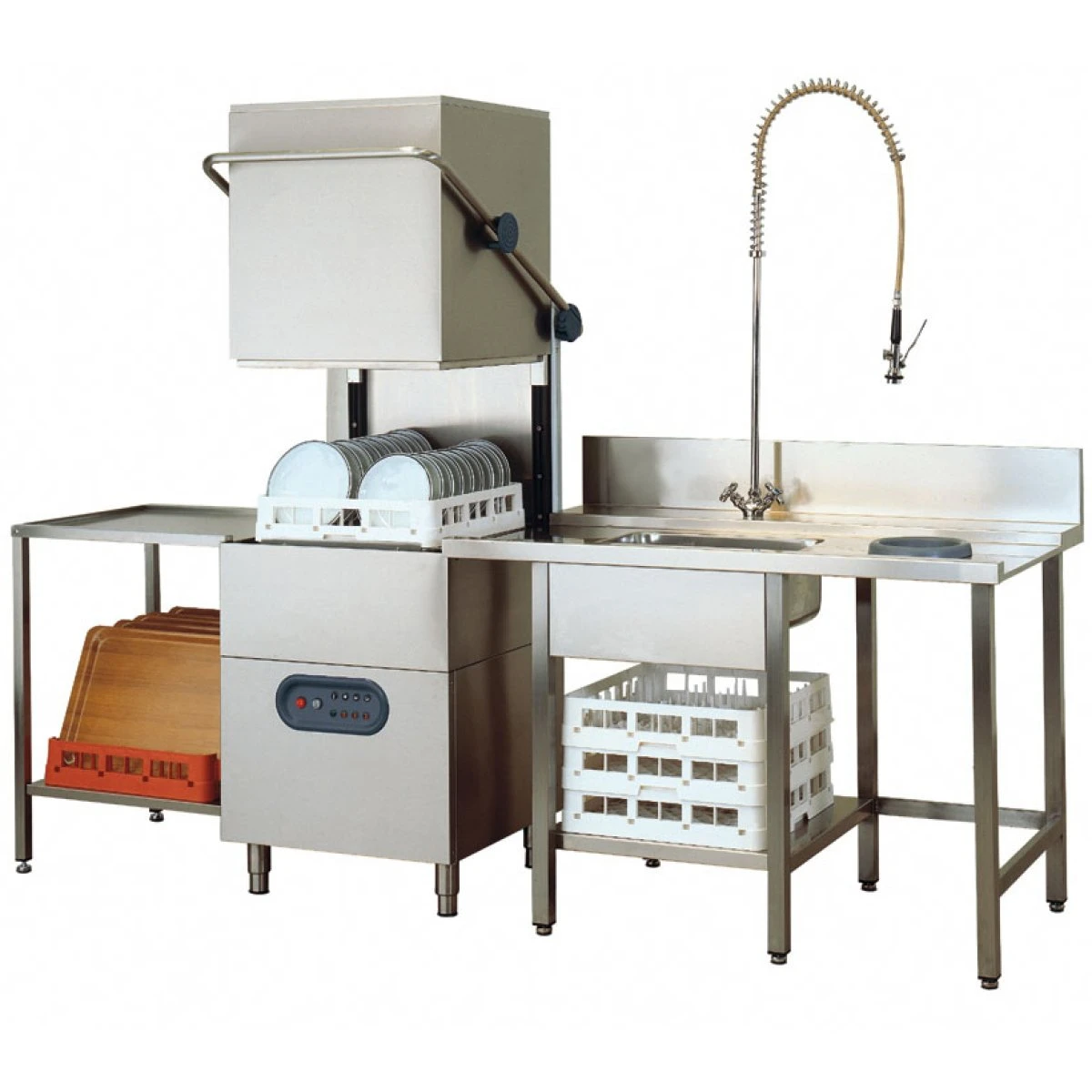

Pass Through Dishwasher Premium Rinse Aid Pump Detergent Pump 230V | Omniwash 61BDD-230 - Image 2

Pass Through Dishwasher Premium Rinse Aid Pump Detergent Pump 230V | Omniwash 61BDD-230

Original price was: £360.00.Current price is: £95.99.

SKU: 61BDD230 Categories: Dishwashers & Glasswashers, Italian Dishwashers, Pass Through Dishwashers Tags: 230V, 61BDD-230, Detergent pump, Made in Italy, Omniwash, Pass through dishwasher, Rinse aid pump

Superior Quality Goods
Top-Notch Quality
The home of quality products.
Quality Products, Quality Service

A commercial passthrough, hood type dishwasher that meets the high demands of the commercial food service industry. Suited for medium or large professional kitchens found in bars, pubs, hotels, restaurants or hospitals. With the power and efficiency to wash up to 40 racks per hour, it’s amongst the fastest, most economical hood machines on the market! This industrial dishwashing mahine is for professional catering business use.

Fitted with

– Hydraulic rinse aid pump
– Peristaltic detergent pump

Top quality pass through machine uses a powerful wash pump.
The top wash arm starts first to pin down any breakable or light items. This is followed a few seconds later by the lower wash arm to complete the washing action.
This hood type dishwasher offers a choice of wash cycles, depending on the degree of soiling on the plates.
Starting the cycle is as easy as lowering the hood, automatically starting the washing and rinsing sequence.
Made in Italy.

Wash tank surface filter
Electric supply: 230V/1N/50Hz
Wash pump power: 750W
Wash pump flow rate: 420 litres/min
Boiler element: 6000W
Tank element: 4500W
Total power rating: 6750W
Wash tank capacity: 55 litres
Boiler capacity: 9 litres
Wash temperature: +55°
Rinse temperature: +85°
Cycle time: 90/180 sec
Cycles/hour (up to): 40/20
Required water pressure: bar 2-4
Water supply hose: 3/4” / 31
Supply water: Max +50°C
Noise emission: < 62 dBA
Square basket size: 500×500
Hourly output Glasses (up to): 2000
Hourly output Dishes (up to): 720
Net weight: 105kg

Noise level	< 62 dBA
Water pressure (inlet)	2-4 bar 45-50 °C
Production (plates)	720 plates/hour
Production (theoretic)	40 baskets/hour
Included	Hydraulic rinse aid pump and Peristaltic detergent pump
Width	704mm
Depth	962mm
Height	1474 / 1904mm
Weight	105kg
Height (inner)	430mm
Basket Size	500x500mm
Power supply	230V / 3 phase
Power	6750W
Power (tank)	4500W
Temperature (washing)	+50 °C
Temperature (rinsing)	+85 °C
Detergent dispenser	Yes
Programs	2
Volume (wash tank)	55 litres
Washing cycles	90 / 120 seconds
Power (rinse tank)	6000W
Rinse aid dispenser	Yes
Rinse function	Hot water
Water consumption (rinsing)	3.5 litres
Warranty	12 mth spare parts warranty
