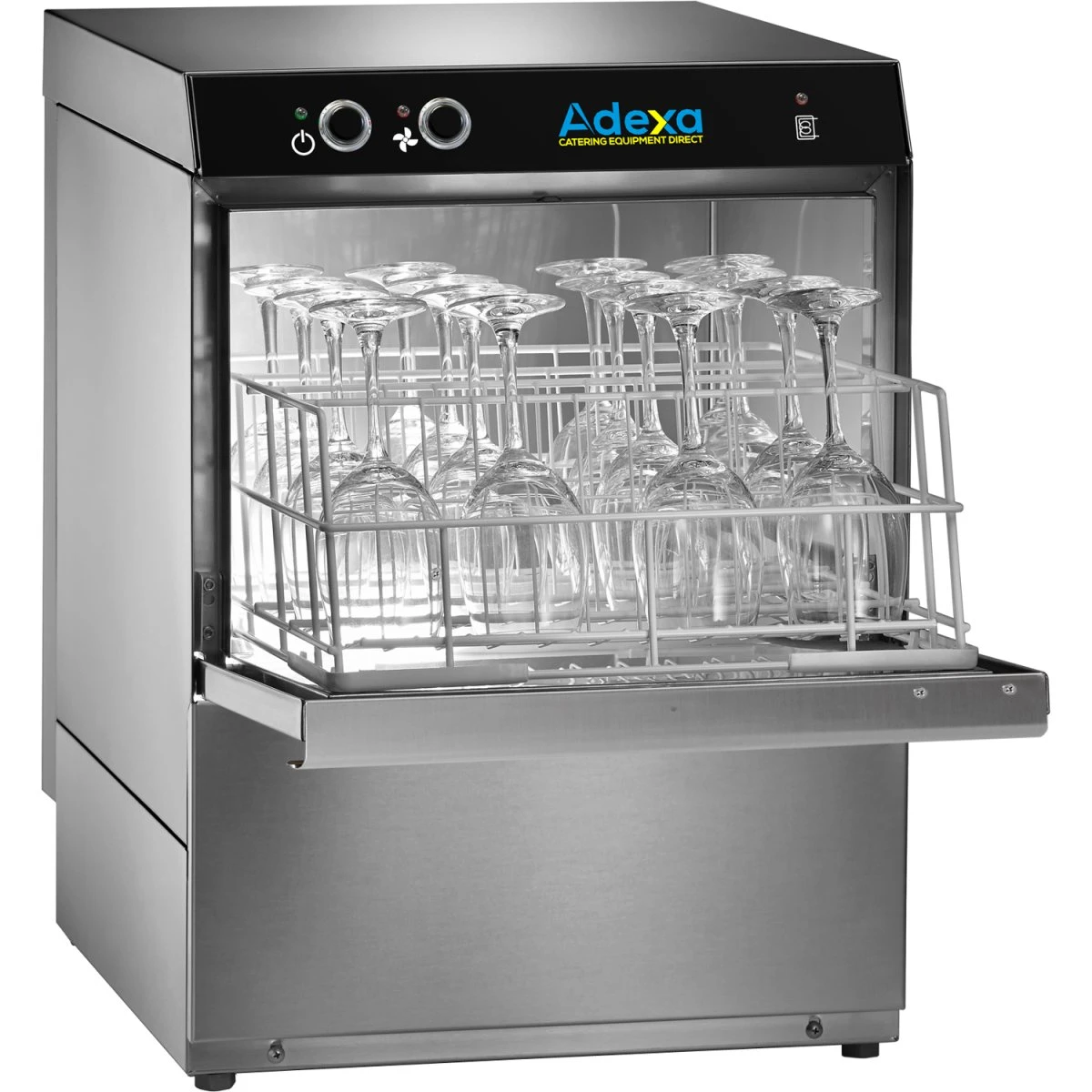

Commercial Glasswasher Premium 400mm Basket 30 Baskets/hour Drain Pump Detergent Dosing Pump 13A | Adexa ADX40

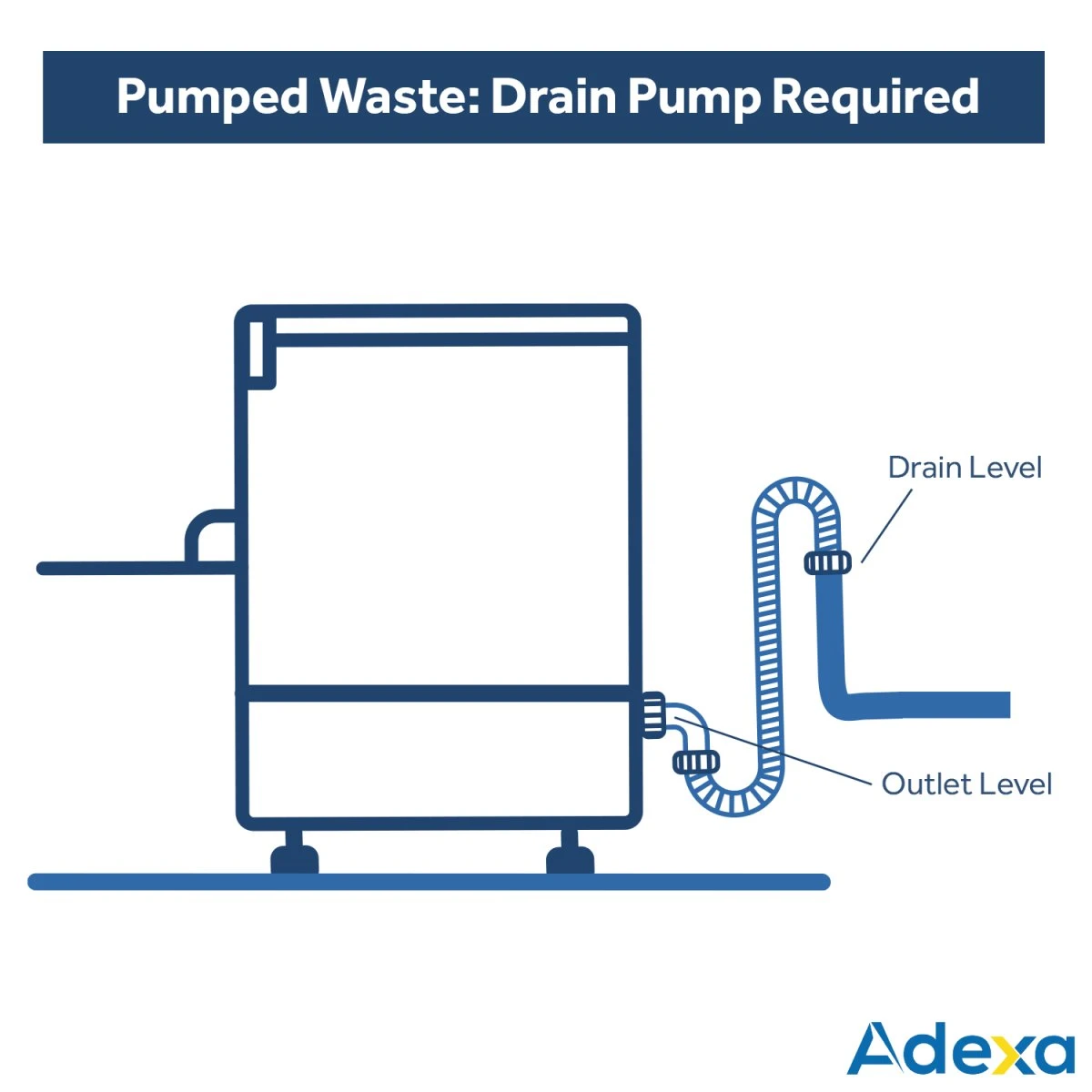

High quality and fully equipped professional glasswasher for bars, resturants and other catering establishments. This item is fitted with a
drain pump for waste disposal. The pump is activated at the end of the washing
cycle to release dirty water from the machine. A drain pump is essential if the
drain is level or higher than the water outlet of the machine.



• Single-skinned cabinet with double-skinned door
• Made in Italy
• With drain pump
• With detergent dosing pump
• Low noise
• Wash pump fixed directly to the tank
• Easy-clean-filter system
• Stainless-steel wash arm and two rinse arms of composite material, all independent and rotary
• Tank and door made of stainless steel AISI 304.
• Adjustable rinse aid dosing unit
• Micro security door
• Electromechanical control panel

• Cycle: 120 sec (30 baskets/h)
• Basket size: 400 x 400 mm
• Wash pump power: 0.17 kW
• Wash pump capacity: 109 litres/min
• Element power (tank): 1.6 kW
• Element power (boiler): 2.8 kW
• Water supply temperature: +55°C
• Water supply pressure: 200 – 400 kPa
• Water supply hardness max: min. 7 max. 12°f
• Washing temperature: +55°C
• Rinsing temperature: +85°C
• Capacity tank: 14litres
• Capacity boiler: 2.7 litres
• Water consumption per cycle: 2.4 litres
• Sound emission: 48 dB(A)
• Total power: 2.97 kW
• Power supply: 230V / 1N / 50Hz

Included accessories

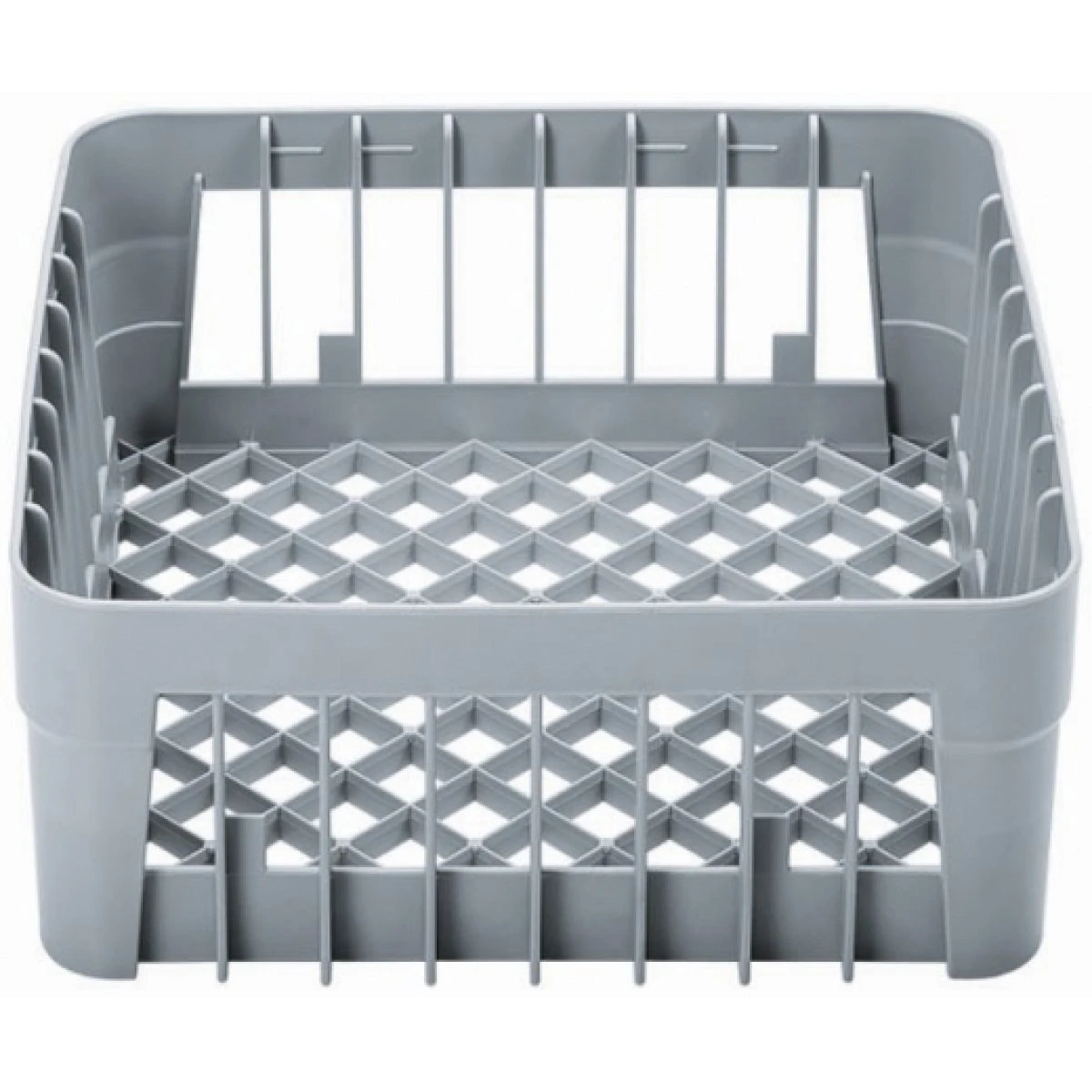

• Baskets; 1 universal basket, 1 cutlery rack
• Hoses (1 for each); Water connection, Drain, Transparent rinsing product

Documents

• Click here to download User Manual
• Click here to download Instructions for Adjusting Rinse Aid and Detergent Dispensers
